As manufacturers continue to increase the power levels in EVs, circuit protection is an important element in system design.

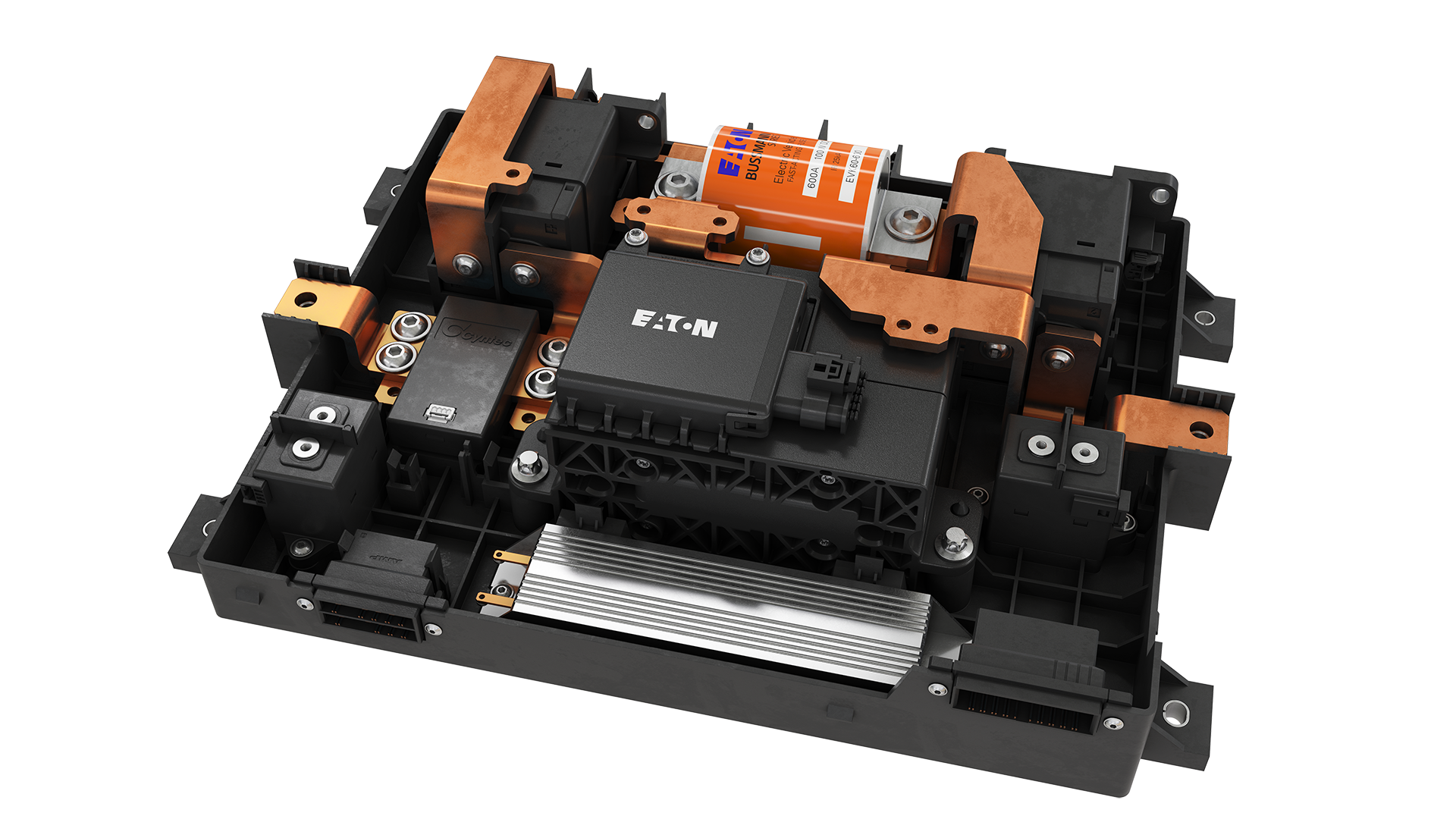

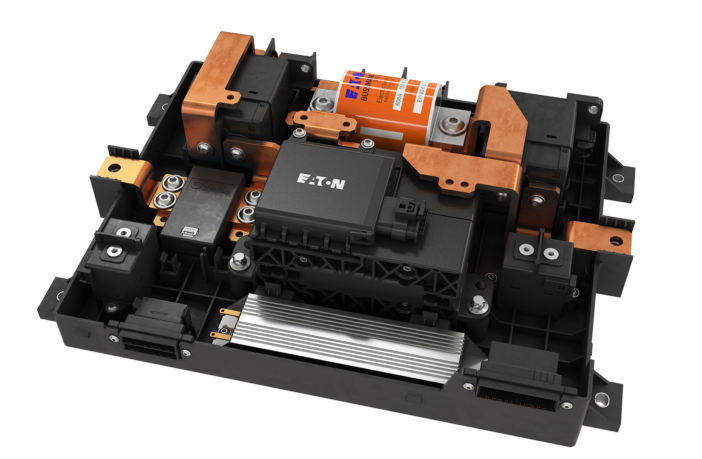

Power management company Eaton has introduced a battery disconnect unit (BDU) that can be combined with upgraded Breaktor circuit protection technology to provide circuit protection in electrified vehicles.
When paired with its Breaktor circuit protection technology, which combines current switching and resettable bidirectional short-circuit protection with fast actuation, Eaton’s BDU eliminates the need for up to 15 additional system components. Traditional systems require a combination of pyro and thermal fuses and contactors.
“Our BDU combined with our Breaktor circuit protection technology provides everything needed, in a compact and efficient package, to protect the vehicle and occupants.”
The BDU’s primary function is to serve as an on/off switch to the battery depending on the mode the EV is operating in, such as charging or driving. Current model EVs rely on one of three traditional BDU configurations: fuse and contactor; pyro fuse and contactor; or fuse, pyro fuse and contactor, all used together in a single BDU. While all provide switching and protection functions, they each have disadvantages, including overall system complexity, serviceability, coordination difficulties and susceptibility to fatigue under high current levels.
Adding Breaktor circuit protection technology to Eaton’s BDU provides active and passive actuation in a single device; the capability to transition to an off-state under a wide range of fault conditions; improved functional safety; the ability to be reset after a high-energy fault; and the ability to replace up to four high-voltage electrical components, which reduces complexity and system-level cost.
“Our Breaktor circuit protection technology’s self-triggering design, diagnostic electronics and mirror contact help achieve BDU functional safety goals,” said Kevin Calzada, global product strategy manager, Eaton’s eMobility business. “With its integrated coil driver, economizer, and the sensing/triggering circuit, Breaktor circuit protection technology also reduces battery management-system cost and complexity.”
Eaton’s Breaktor circuit protection technology also enables up to 350 kW DC fast charging when used to protect and switch the DC fast-charge circuit, allowing EVs to charge in 15 minutes or less. This capability is made possible by recent upgrades to the Breaktor circuit protection technology’s thermal management and materials to boost its power capacity. Breaktor circuit protection technology is now able to carry 500 amps continuously and up to 750 amps of continuous current when an active or passive cooling system is leveraged.
